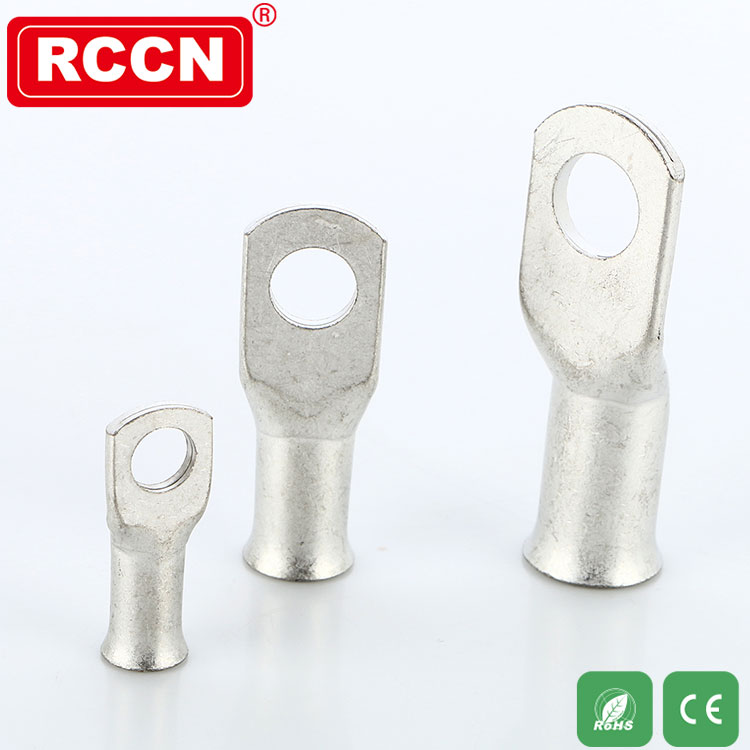

日成喇叭口铜管端子 TU

产品材质:接线端子采用优质紫铜制成,导电性良好,外套采用优质ROHS-PVC制,耐久性不易老化.
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套日成端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

接线端子,冷压端子,铜管端子,冷压接线端子标准

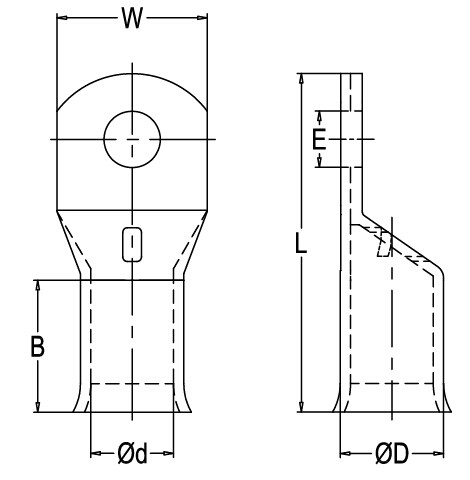

型号 Item No.	E	Dφ	dφ	W	B	L
TU10-5	5.3	6.9	4.4	10.5	9	27
TU10-6	6.4	6.9	4.4	10.5	9	27
TU10-8	8.4	6.9	4.4	14	10	35
TU10-10	10.4	6.9	4.4	16	10	39
TU10-12	12.8	6.9	4.4	18	10	39
TU16-5	5.3	8	5.6	11	11	29.5
TU16-6	6.4	8	5.6	11	11	29.5
TU16-8	8.4	8	5.6	14	11	38
TU16-10	10.4	8	5.6	16	11	42
TU16-12	12.8	8	5.6	18	11	42
TU25-5	5.3	9.5	7	13.5	13	40
TU25-6	6.4	9.5	7	13.5	13	40
TU25-8	8.4	9.5	7	13.5	13	40
TU25-10	10.4	9.5	7	16	13	44
TU25-12	12.8	9.5	7	18	13	44
TU35-5	5.3	11	8.2	15.5	14	41
TU35-6	6.4	11	8.2	15.5	14	41
TU35-8	8.4	11	8.2	15.5	14	41
TU35-10	10.4	11	8.2	15.5	14	45
TU35-12	12.8	11	8.2	18	14	45
TU35-14	14.5	11	8.2	20	14	50
TU50-5	5.3	12.1	9.5	17.2	18	46
TU50-6	6.4	12.1	9.5	17.2	18	46
TU50-8	8.4	12.1	9.5	17.2	18	46
TU50-10	10.4	12.1	9.5	17.2	18	50
TU50-12	12.8	12.1	9.5	17.2	18	50
TU50-14	14.5	12.1	9.5	20	18	55
TU50-16	16.5	12.1	9.5	22	18	55
TU70-5	5.3	15	11.5	21.2	18	48
TU70-6	6.4	15	11.5	21.2	18	48
TU70-8	8.4	15	11.5	21.2	18	48
TU70-10	10.4	15	11.5	21.2	18	52
TU70-12	12.8	15	11.5	21.2	18	52
TU70-14	14.5	15	11.5	21.2	18	63
TU70-16	16.5	15	11.5	21.2	18	63
TU95-8	8.4	17	13.5	24.3	24	58
TU95-10	10.4	17	13.5	24.3	24	58
TU95-12	12.8	17	13.5	24.3	24	58
TU95-14	14.5	17	13.5	24.3	24	69
TU95-16	16.5	17	13.5	24.3	24	69
TU120-8	8.4	19	15	27.2	27	73
TU120-10	10.4	19	15	27.2	27	73
TU120-12	12.8	19	15	27.2	27	73
TU120-14	14.5	19	15	27.2	27	73
TU120-16	16.5	19	15	27.2	27	73
TU120-20	21	19	15	27.2	27	73
TU150-8	8.4	21	16.5	30	27	78
TU150-10	10.4	21	16.5	30	27	78
TU150-12	12.8	21	16.5	30	27	78
TU150-14	14.5	21	16.5	30	27	78
TU150-16	16.5	21	16.5	30	27	78
TU150-20	21	21	16.5	30	27	78
TU185-10	10.4	23	18.5	33.5	30	82
TU185-12	12.8	23	18.5	33.5	30	82
TU185-14	14.5	23	18.5	33.5	30	82
TU185-16	16.5	23	18.5	33.5	30	82
TU185-20	21	23	18.5	33.5	30	82
TU240-10	10.4	26	21	37.7	32	88
TU240-12	12.8	26	21	37.7	32	88
TU240-14	14.5	26	21	37.7	32	88
TU240-16	16.5	26	21	37.7	32	88
TU240-20	21	26	21	37.7	32	88
TU300-10	10.4	28	23	41	37	97
TU300-12	12.8	28	23	41	37	97
TU300-14	14.5	28	23	41	37	97
TU300-16	16.5	28	23	41	37	97
TU300-20	21	28	23	41	37	97
