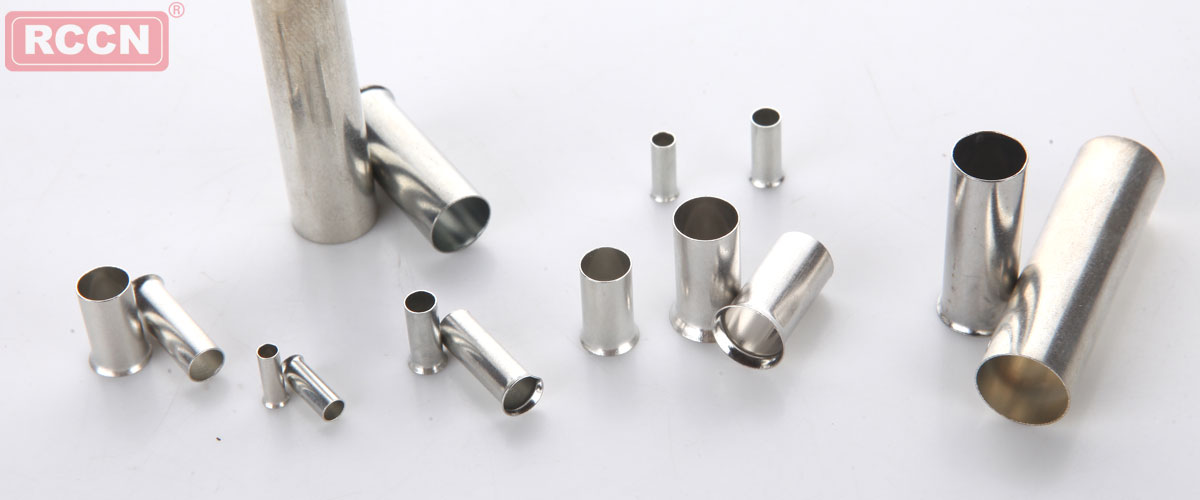

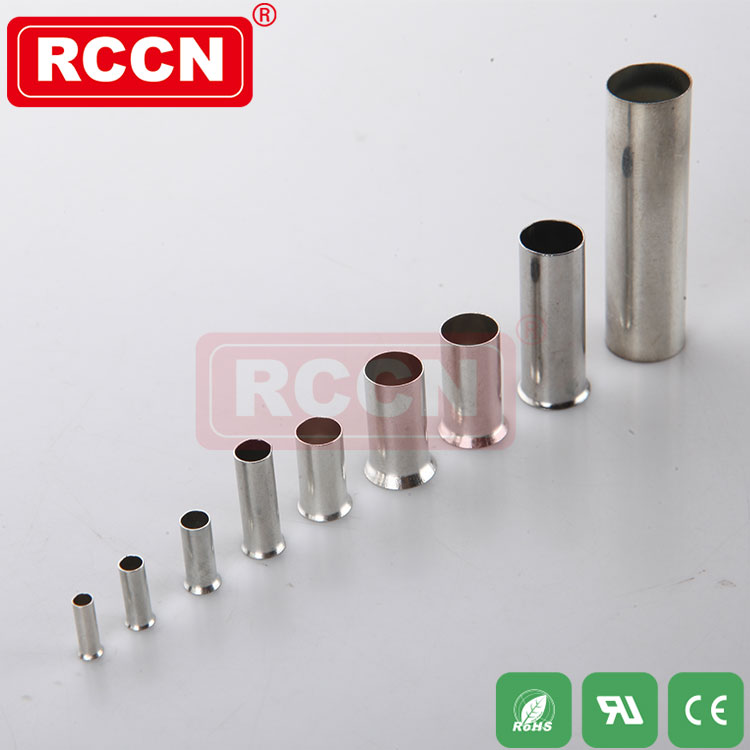

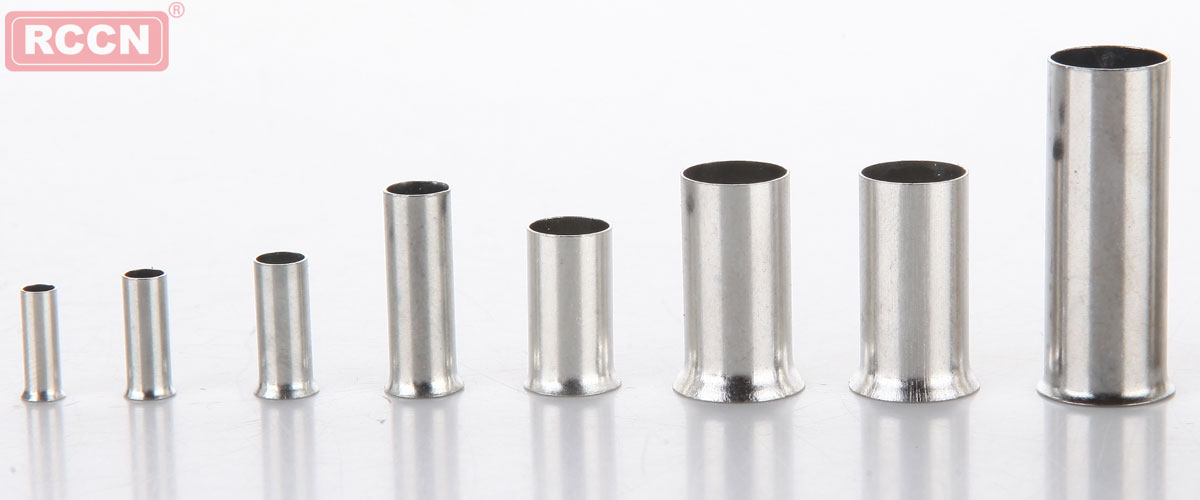

日成管形裸端子 EN

产品材质:接线端子采用优质紫铜制成,导电性良好,外套采用优质ROHS-PVC制,耐久性不易老化.
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套日成端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

接线端子,冷压端子,铜管端子,冷压接线端子标准

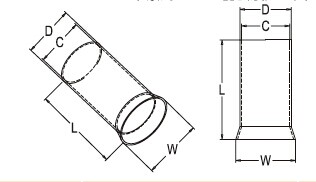

型号	尺寸				导线截面
	L	D	C	W	A.W.G	mm2
	mm	mm	mm	mm	A.W.G	mm2
EN0.3-6	6	1.1	0.8	1.5	#24	0.3
EN0.8-6	8	1.1	0.8	1.5	#24	0.3
EN0.5-6	6	1.3	1	1.7	#22	0.5
EN0.5-8	8	1.3	1	1.7	#22	0.5
EN0.5-10	10	1.3	1	1.7	#22	0.5
EN0.5-12	12	1.3	1	1.7	#22	0.5
EN0.75-6	6	1.5	1.2	1.9	#20	0.75
EN0.75-8	8	1.5	1.2	1.9	#20	0.75
EN0.75-10	10	1.5	1.2	1.9	#20	0.75
EN0.75-12	12	1.5	1.2	1.9	#20	0.75
EN1.0-6	6	1.7	1.4	2.2	#18	1
EN1.0-8	8	1.7	1.4	2.2	#18	1
EN1.0-10	10	1.7	1.4	2.2	#18	1
EN1.0-12	12	1.7	1.4	2.2	#18	1
EN1.5-8	8	2	1.7	2.5	#16	1.5
EN1.5-10	10	2	1.7	2.5	#16	1.5
EN1.5-12	12	2	1.7	2.5	#16	1.5
EN1.5-18	18	2	1.7	2.5	#16	1.5
EN2.5-8	8	2.5	2.2	3.3	#14	2.5
EN2.5-10	10	2.5	2.2	3.3	#14	2.5
EN2.5-12	12	2.5	2.2	3.3	#14	2.5
EN2.5-18	18	2.5	2.2	3.3	#14	2.5
EN4.0-9	9	3.2	2.8	3.9	#12	4
EN4.0-12	12	3.2	2.8	3.9	#12	4
EN4.0-18	18	3.2	2.8	3.9	#12	4
EN6.0-10	10	3.9	3.5	4.8	#10	6
EN6.0-12	12	3.9	3.5	4.8	#10	6
EN6.0-15	15	3.9	3.5	4.8	#10	6
EN6.0-18	18	3.9	3.5	4.8	#10	6
EN10-12	12	4.9	4.5	5.8	#7	10
EN10-15	15	4.9	4.5	5.8	#7	10
EN10-18	18	4.9	4.5	5.8	#7	10
EN16-12	12	6.2	5.8	7.2	#5	16
EN16-15	15	6.2	5.8	7.2	#5	16
EN16-18	18	6.2	5.8	7.2	#5	16
EN25-16	16	7.9	7.5	9.1	#4	25
EN25-22	22	7.9	7.5	9.1	#4	25
EN35-16	16	8.7	8.3	10.2	#2	35
EN35-25	25	8.7	8.3	10.2	#2	35
EN50-20	20	10.9	10.3	12.4	#1	50
EN50-25	25	10.9	10.3	12.4	#1	50
EN70-25	25	14.3	13.5	15.8	2/0	70
EN70-32	32	14.3	13.5	15.8	2/0	70
